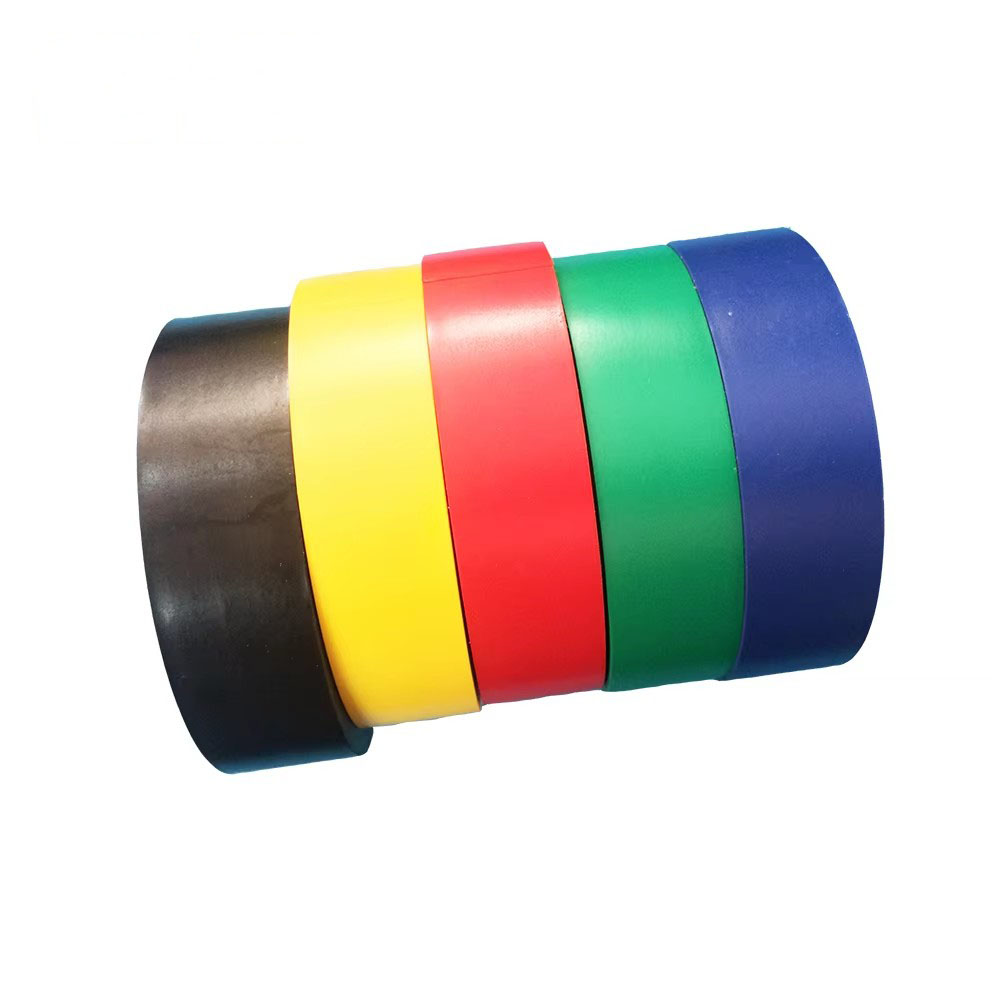

PVC wire harness tape:
Applicable for the automobile wire distribution
very soft PVC film with best wrapping for the
car cable.
1. flame -resistant.
2. high adhesive power for backing.
3. high elongation more than 250%.
4. material: very soft pvc film with matte finish.
5. adhesive: natural rubber glue.
| Technical specification | |||
| Material | Soft PVC Film - Matte / Glossy finish | ||
| Glue | Natural rubber glue | ||
| Foil thickness | 110Mic | ||
| Total thickness | 130Mic | ||
| Release film | No | ||
| Release film thickness | / | ||
| PROPERTIES | UNIT | VALUE | TEST METHOD |
| 180°C Peeling strength | N/10mm | 1.8 | EN60454-2,11 |
| Adhesion to backing | N/10mm | 1.5 | EN60454-2,11 |
| Tensile strength | N/10mm | 20 | EN60454-2,8 |
| Elongation | % | 200 | EN60454-8 |
| Electrolytic corrosion | Grade | A/B1.2 | EN60454-2,7.6 |
| Electrical strength-room temp. | KV/mm | 75 | EN60454-2,17 |
| Electrical strength-humid cond. | KV/mm | 70 | EN60454-2,18 |
| Water resistant | / | Yes | PSTC-34 |
| UV Resistant | / | No | |
| Fire resistant | Class | V-0 | UL94 |
| Moisture resistant | / | Yes | ASTM D1000 |
| Application temperature | °C | 5 ~ +40 | |
| Temperature resistance | °C | -5 ~ +80 | |
| Shelf life | Month | ≥24 | At approx. +20°C and 50% humidity |
