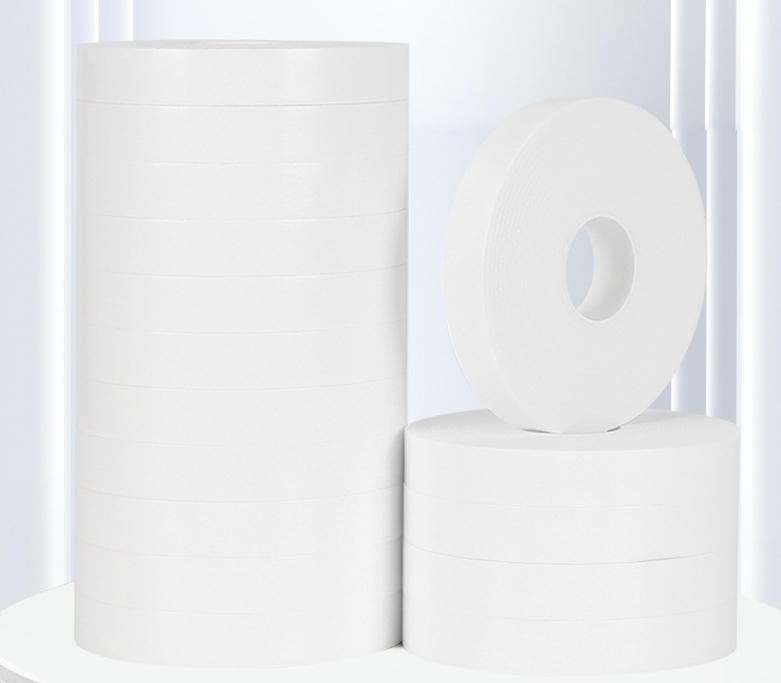

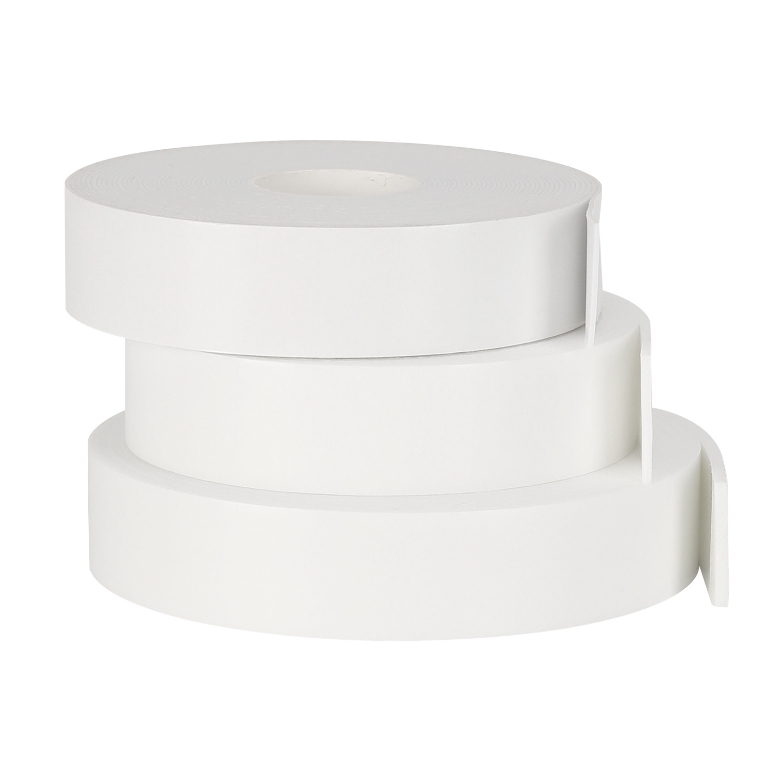

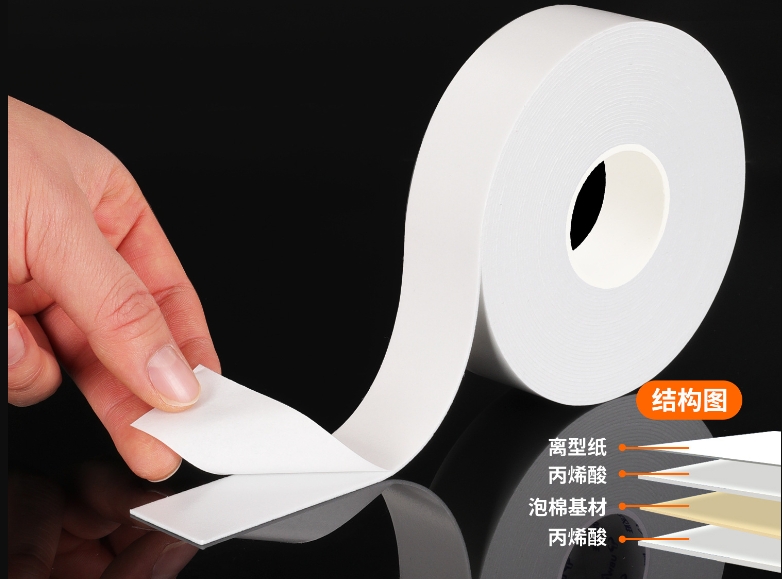

Double side eva foam tape for home use
With middle density EVA foam, coated with
high quality acrylic glue,

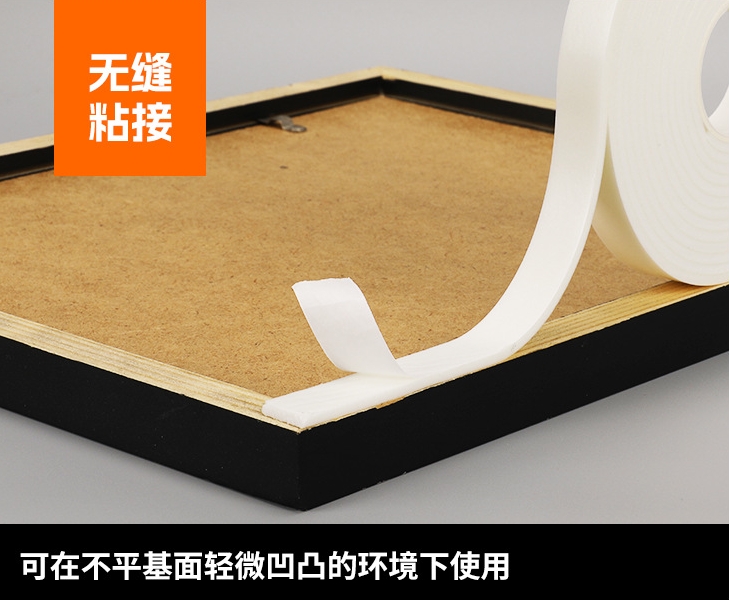

1. special design for adhesing to rough surface,
fixing the name plate
2. sealing and shock absorption.
3. hook fixation, household electrical applicance
stock resistance.

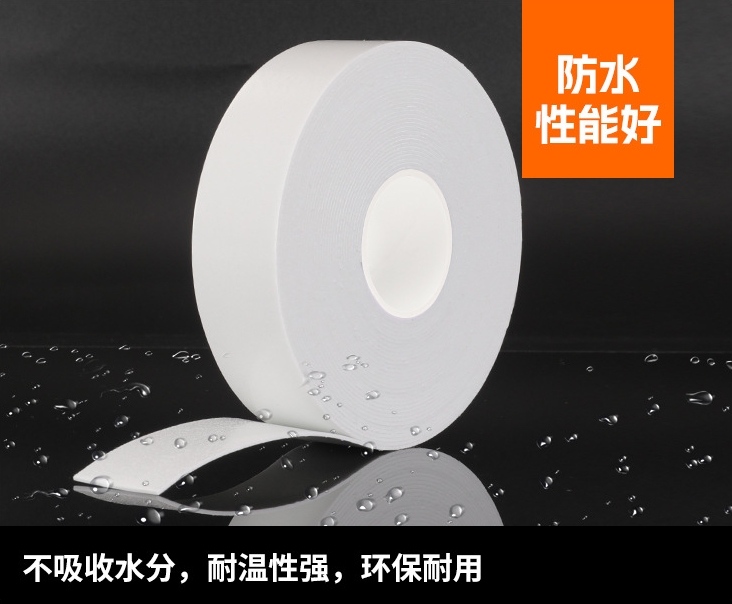

4. good resistance to moisture.

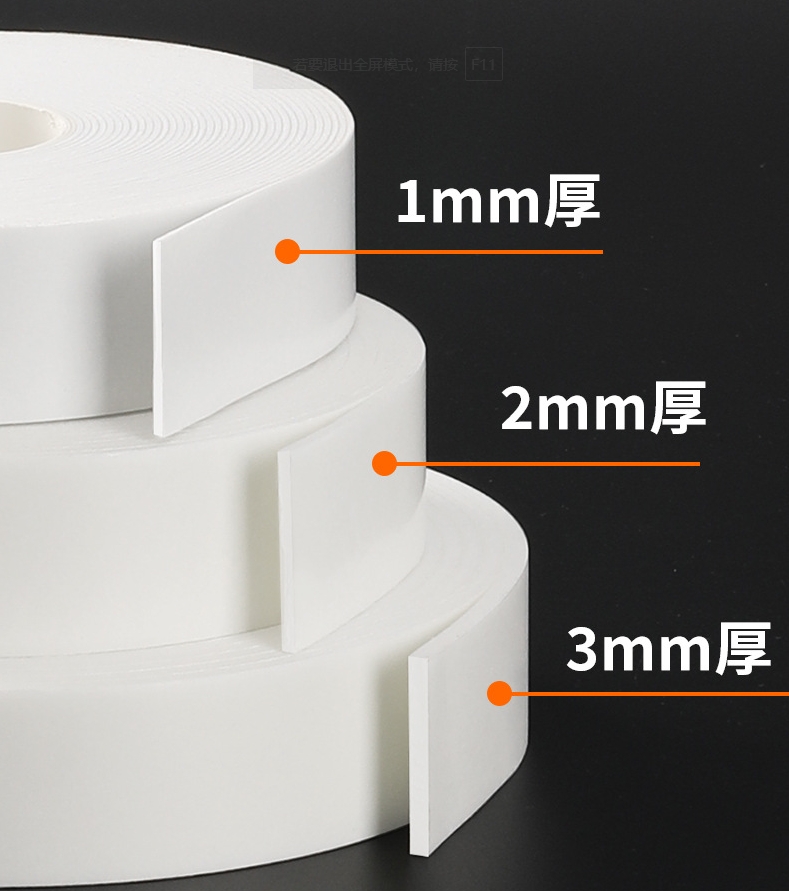

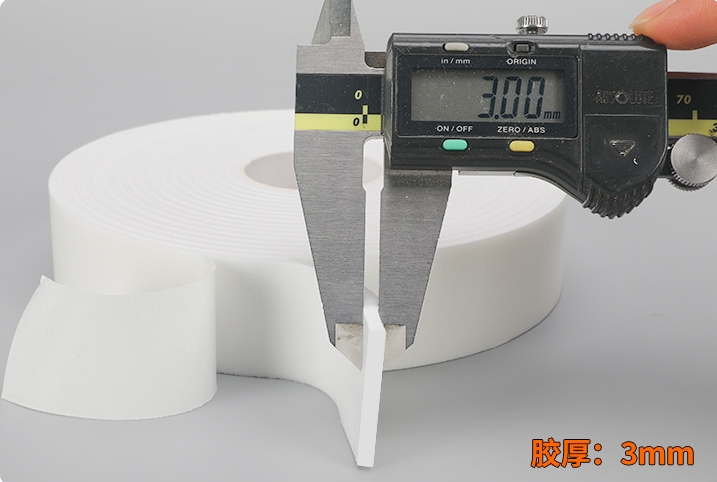

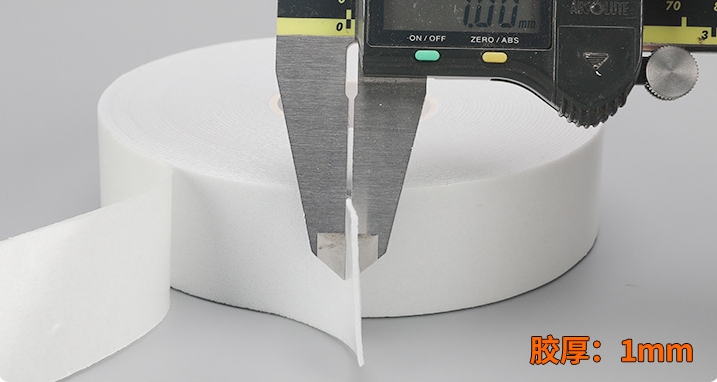

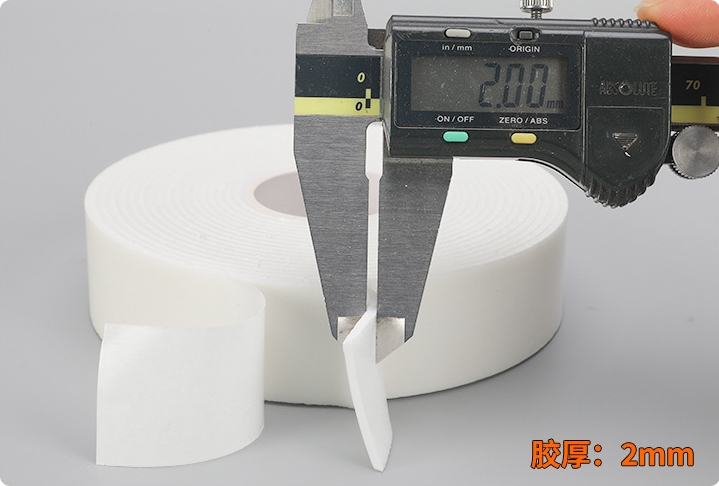

5. thickness : 1mm, 2mm, 3mm ,5mm
6. color: black, white
7. packing: shrink and blister card available.
| Material | 36 HD EVA Foam (By Shore hardness tester) | ||
| Glue | Hotmelt Glue | ||
| Total thickness | 2000Mic | ||

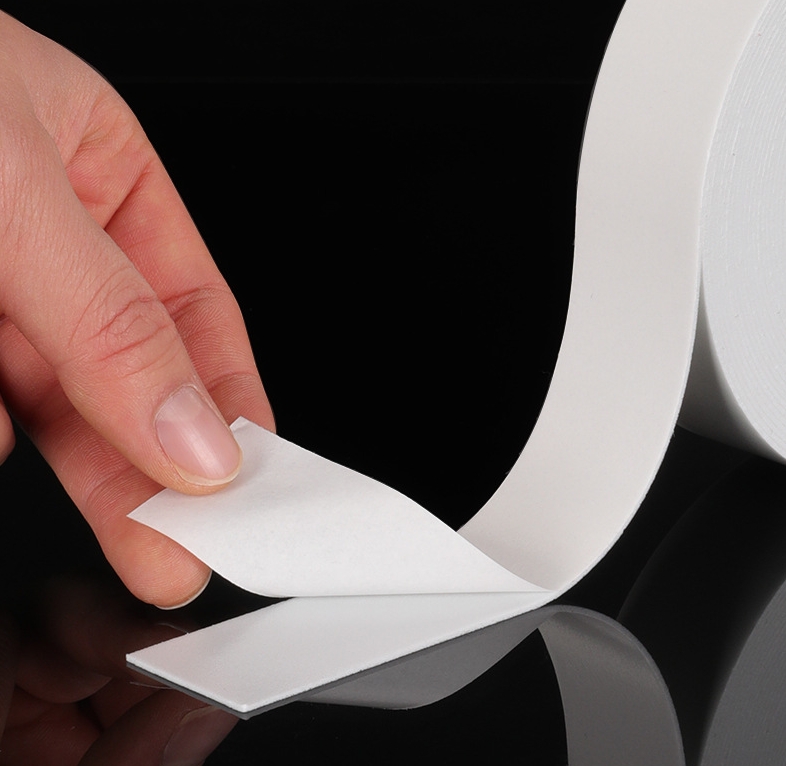

| Release film | White PE-coated Silicone Release Paper | ||
| Release film thickness | 90Mic | ||
| PROPERTIES | UNIT | VALUE | TEST METHOD |
| First adhesive (#11 Steel Ball) | CM | ≤10 | PSTC-6 |
| Persistent strength | H.25mm | ≥ 24 | PSTC-7 |
| 180°C Peeling strength | N/25mm | 25 | PSTC-1 |
| Tensile strength | N/25mm | 15 | PSTC-31 |
| Elongation | % | 300 | PSTC-31 |
| Water resistant | / | Yes | PSTC-34 |
| UV Resistant | / | No | |
| Fire resistant | / | No | |
| Moisture resistant | / | Yes | ASTM D1000 |
| Application temperature | °C | 5 ~ +60 | |
| Temperature resistance | °C | 0 ~ +60 | |
| Shelf life | Month | ≥24 | At approx. +20°C and 50% humidity |
