| Technical specification | |||

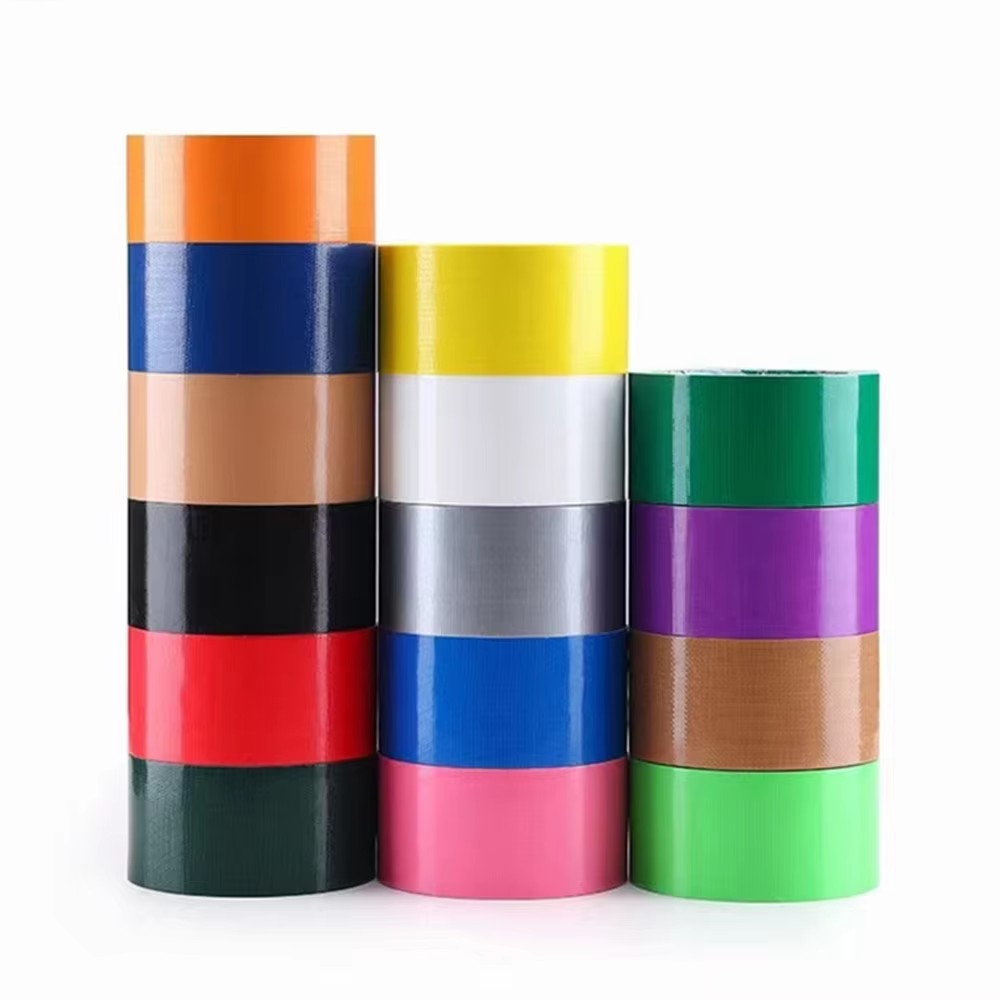

| Material | Colored Pure Cotton Cloth | ||
| Material Weight | 110g/m2 | ||
| Glue | Hotmelt glue | ||
| Foil thickness | 200Mic | ||
| Total thickness | 300Mic | ||
| Release film | No | ||
| Release film thickness | / | ||
| PROPERTIES | UNIT | VALUE | TEST METHOD |
| First adhesive (#11 Steel Ball) | CM | ≤10 | PSTC-6 |
| Persistent strength | H.25mm | ≥24 | PSTC-7 |
| 180°C Peeling strength | N/25mm | ≥12.5 | PSTC-1 |
| Tensile strength | N/25mm | 150 | PSTC-31 |
| Elongation | % | 15 | PSTC-31 |
| Max. permeability in l/m2/s (under press 100 Pa) | g | 10 | |
| UV Resistant | / | No | |
| Fire resistant | / | No | |
| Moisture resistant | / | No | ASTM D1000 |
| Application temperature | °C | 5 ~ +40 | |
| Temperature resistance | °C | 0 ~ +60 | |
| Shelf life | Month | ≥24 | At approx. +20°C and 50% humidity |
